Below is a starting list of documents that were created during the reconstruction of Venice Blvd from Pacific to Linclon in the early 1990. The original document is a bound collection of 11 x 17 inch pages. The entire document is approximently 250 pages printed front and back sides. The document includes all phases of this construction project from layout to water runoff and street lighting along with and all of the details that were required to build this new roadway to State and City standards. These plans were created by Caltrans in a process that included LADOT and final signoff by the California Coastal Commission. The historic early 1900 bridge that is in LADOT Lot #731 that was reconstructed as as part of this project, was contained in a seperate document.

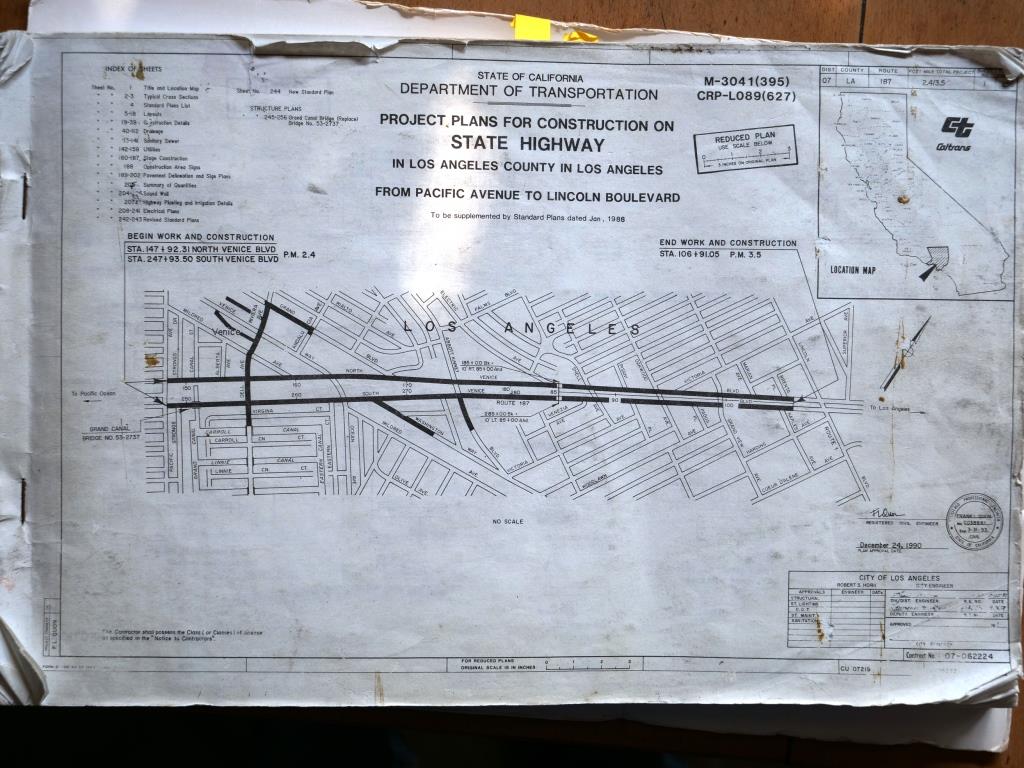

• Cover Page

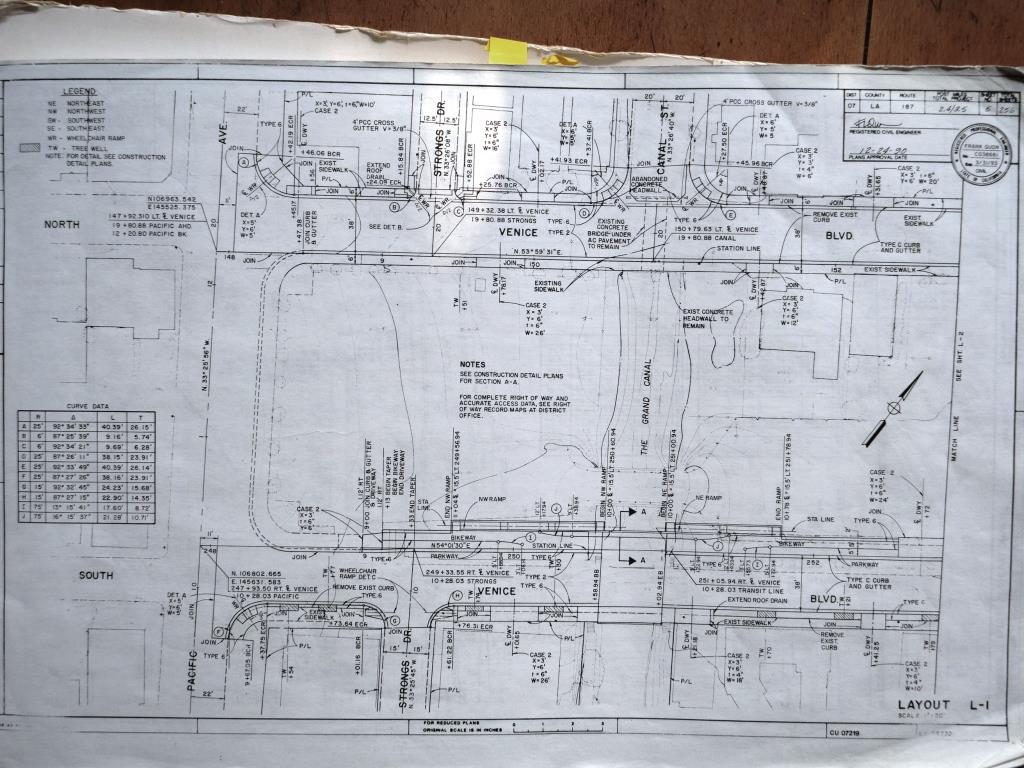

• Layout L1

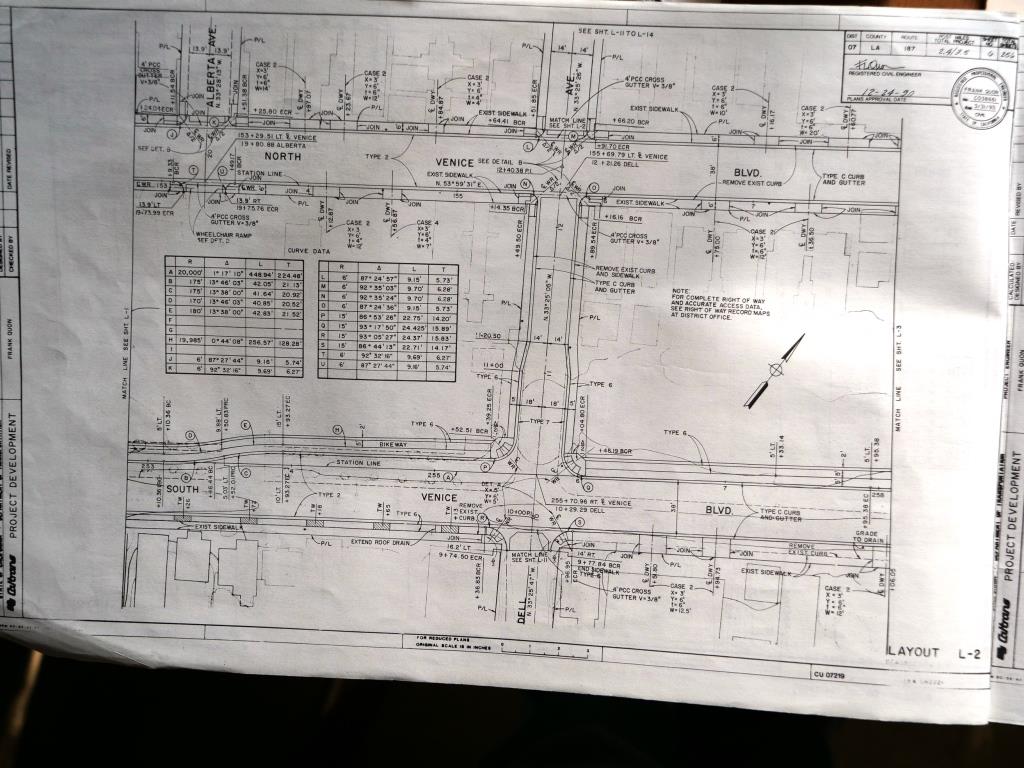

• Layout L2

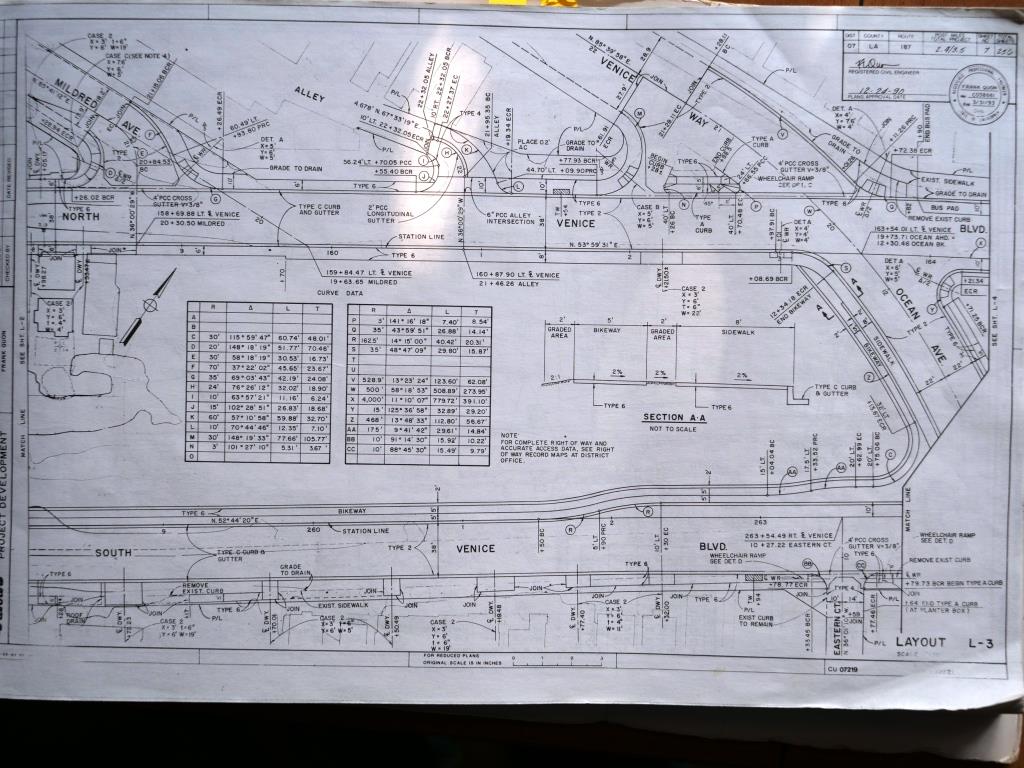

• Layout L3

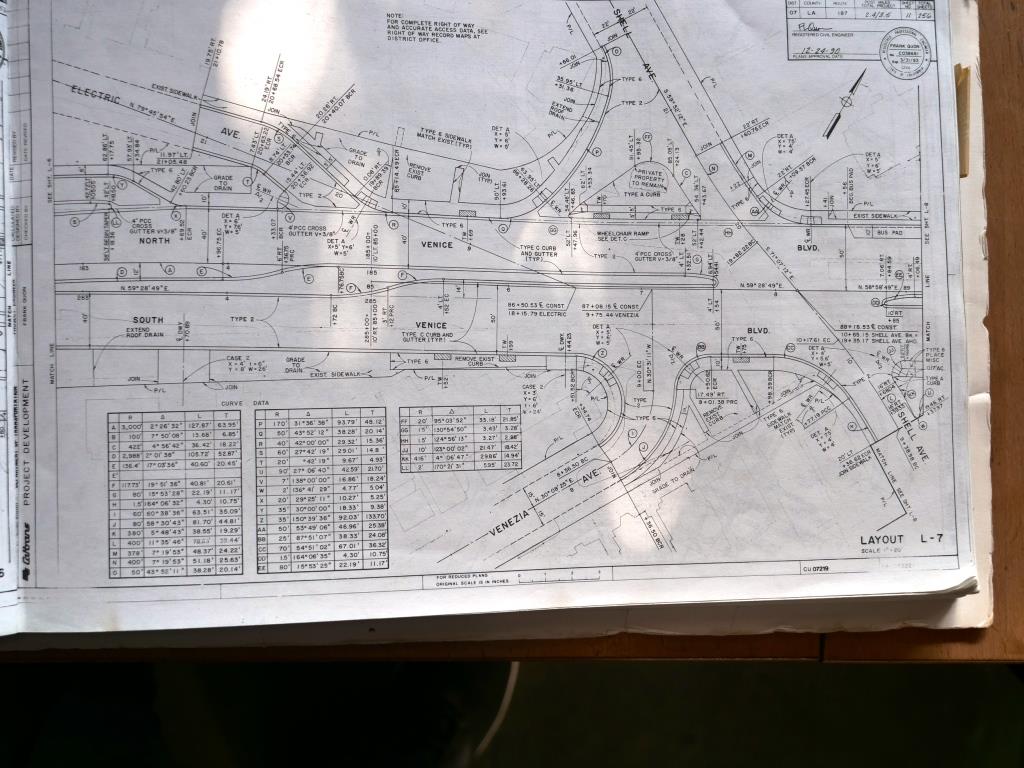

• Layout L7

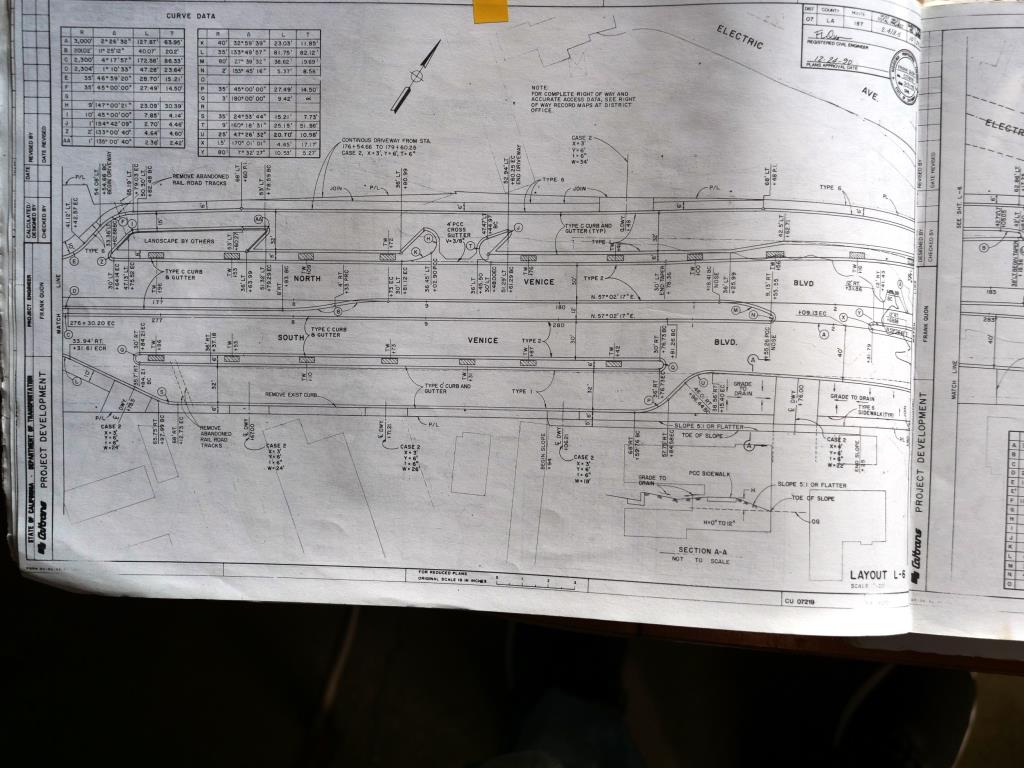

• Layout L7


• Construction C1

For higher resplution images, manually enter the scan number starting with teh letter "P" in the browser URL (example: P1083796.jpg is a 3.2mb image of the Layout p1 drawing above which is about 200kb.)

Note: Additional pages can be scanned on request.
